CAR ELEVATORS
Engineered For The Weight Nothing Else Will Carry.
Up to five tonnes, moved cleanly between floors — cycle after cycle, year after year. Built by Span for the load first.
Product media — placeholder
Overview
Moving a vehicle is not the same as moving people — it asks for more steel, more drive, more margin. Span car elevators are built for exactly that: up to five tonnes, cycle after cycle, for years, with the structure, clearance, and safety systems the load demands. For multi-level car parks, showrooms, and service workshops that run on the machine holding up.
THE ENGINEERING
A Different Class Of Machine.
A passenger lift carries people. A car elevator carries a tonne of steel with a driver still inside it — and that changes everything beneath the platform. Span specifies heavy-gauge structural framing, a drive rated well beyond the working load, and guide rails and safety gear sized for the full mass in motion. The rated capacity is the floor of what the machine will take, not the ceiling.
Heavy-Gauge Structure
Platform and frame engineered for repeated full-load cycles, not occasional peaks.
Over-Rated Drive
Specified with margin above working weight, so the machine never runs at its limit.
Load-Sized Safety
Overload sensing, safety gear, and interlocks rated for the vehicle's mass — not a passenger car's.
THE DUTY CYCLE
Built To Repeat, Not Just To Lift.
A showroom lift may run two hundred times a day; a car-park lift, more. What matters is not how much it lifts once, but how many times it lifts before anything wears. Span builds for the cycle — hardened wear surfaces, serviceable components, and a maintenance regime that holds the machine to its original tolerances for its full life. Twenty-five years, zero safety incidents — under loads most lifts never see.
APPLICATIONS
Where The Lift Is Infrastructure.
Multi-Level Car Parks
Vertical vehicle movement where every level has to carry traffic.
Showrooms
Display vehicles moved between floors, cleanly and on show.
Service Workshops
Heavy, repeated daily cycles with vehicles and equipment.
Basements & Constrained Sites
Vehicle access where the structure won't allow a conventional approach.
Specifications
Up to 5,000 kg (5 tonnes), 4-Panel Centre-Opening Door (mm)
| Capacity | Shaft W | Shaft D | Car inside W | Car inside D | Entrance W | Machine room | Overhead | Pit |
|---|---|---|---|---|---|---|---|---|
| Up to 5,000 kg (5 tonnes) | 4000 | 8090 | 2500 | 5300 | 2400 | 4000 × 8090 | 5100 | 1700 |
Client's civil scope (before installation): Walls min. 150 RCC or 230 brick, hoistway front wall 230 brick preferred · Machine-room slab RCC 150 thick, min. 1000 kg/sq.m · all civil work, holes, grouting by client · Steel: rolled hoisting beams, machine beams, hitch/support beams, government supports, pit ladder.
Safety & Compliance
IS 17900. Reinforced platform, overload protection, and pit safety devices for secure vehicle transport. Overspeed governor, car-frame safety brakes, Auto Rescue Device. 25 years, zero incidents.
Configurations / Options
Up to 5,000 kg (5 tonnes) capacity · 4-panel centre-opening doors (drive-through, both sides) · finishes for showroom display. Civil drawings and structural calculations customized per building.
REAL INSTALLATIONS
Installed And Carrying Load.
ON SITE

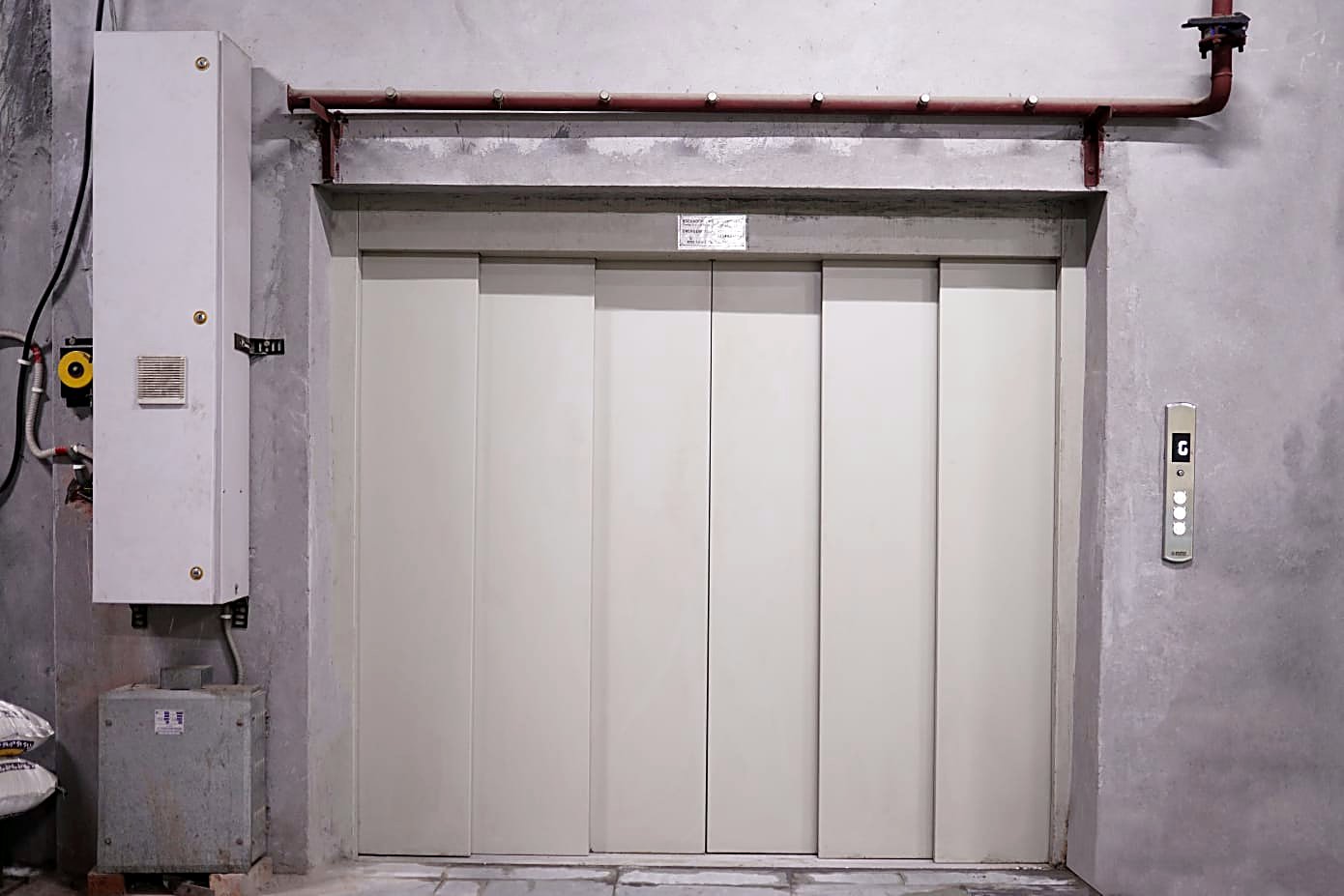

ON SITELanding & Doors
- DOORS
- Bi-parting steel
- SURROUND
- Cast-in-situ concrete
- CONTROLS
- Span COP with position indicator

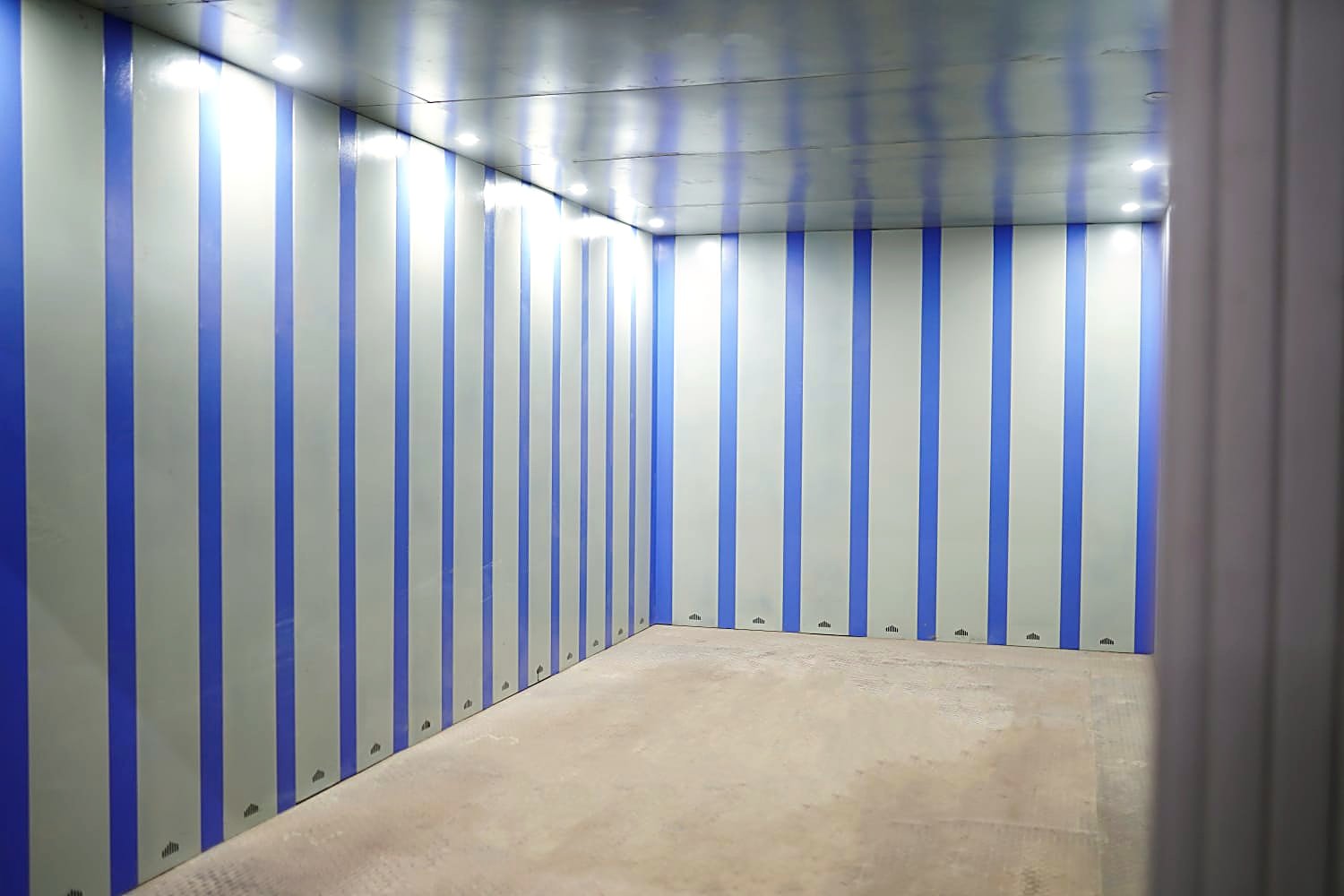

ON SITEPlatform Interior
- DECK
- Chequered steel plate
- WALLS
- Panelled
- LIGHTING
- Recessed LED
Installed work. Photographed on site.
