PASSENGER ELEVATORS
The First Thing Your Building Says.
Span passenger elevators move people quietly, smoothly, and on time — VVVF gearless to 1.5 m/s, 5 to 20+ passengers, ARD-protected, BIS & ISO certified, and held to 25 years without one incident. A building's first impression shouldn't be its weakest link.
Installed · Maharaja Agrasen Institute, Delhi
Overview
For offices, malls, hotels and residential towers, the passenger lift is infrastructure people notice only when it fails. Span builds it to never give them the reason — commercial-grade duty, accurate leveling, and the kind of quiet that signals the building was done properly.
The Span Difference
Commercial-grade by design.
Built for high-rises, malls and offices in continuous duty under heavy footfall — not a home lift scaled up.
Fast enough to fix the queue.
VVVF gearless drives up to 1.5 m/s cut wait times and smooth traffic.
Sized to your traffic, not a catalogue.
5 to 20+ passengers (340–1360 kg), configured to the building's actual load.
Safety built in, not bolted on.
ARD, overload protection, multi-beam door sensors, emergency intercom — standard, not optional.
A drive that pays its way.
VVVF gearless: smooth acceleration, quiet ride, lower energy bills every month it runs.
A cabin that earns the lobby.
Premium stainless, glass panels, designer lighting — the ride people remember.
Specifications
Standard configurations (mm)
| Load (persons / kg) | Speed (m/s) | Shaft (A×B) | Car inside (C×D) | Entrance |
|---|---|---|---|---|
| 5 / 340 | 0.7 | 1500 × 1500 | 1100 × 900 | 700 |
| 8 / 544 | 0.7 / 1.0 | 1600 × 1800 | 1200 × 1200 | 800 |
| 10 / 680 | 1.0 / 1.5 | 1800 × 1850 | 1400 × 1250 | 800 |
| 13 / 884 | 1.0 / 1.5 | 2400 × 1750 | 2000 × 1100 | 900 |
| 20 / 1360 | 1.5 | 2500 × 2400 | 2000 × 1550 | 1000 |
Pit & headroom (mm)
| Speed | Pit depth | Headroom |
|---|---|---|
| Up to 0.7 m/s | 1350 | 4300 |
| > 0.7 to 1.0 m/s | 1500 | 4300 |
| Up to 1.5 m/s | 1600 | 4800 |
Civil & electrical: Hoistway walls min. 150 mm RCC or 230 mm brick · Machine-room slab 150 mm RCC · Slab load 1500 kg/sq.m uniform + reaction loads · Weather protection required. Main power 415 V, 3-phase, 4-wire with ELCB · Auxiliary 5 A, 230 V single-phase ELCB · one ELCB per elevator (fan & light).
Safety & Compliance
Every Span passenger elevator ships with the full safety stack built in: multi-beam IR door sensor, Auto Rescue Device, emergency intercom, floor announcer, overload warning. BIS & ISO certified, built to IS 17900. 25 years, zero incidents.
Configurations / Options
Glass cabin panels · TFT display · destination control · access-card system · fire service mode · dual entrance · custom flooring.
Applications
Office buildings · high-rise towers · malls & metros · hospitals.
Selected Commercial Installations
A passenger lift is judged the moment the doors open. These are Span cabins in working buildings — lobbies, atriums and towers where the ride is part of the address.

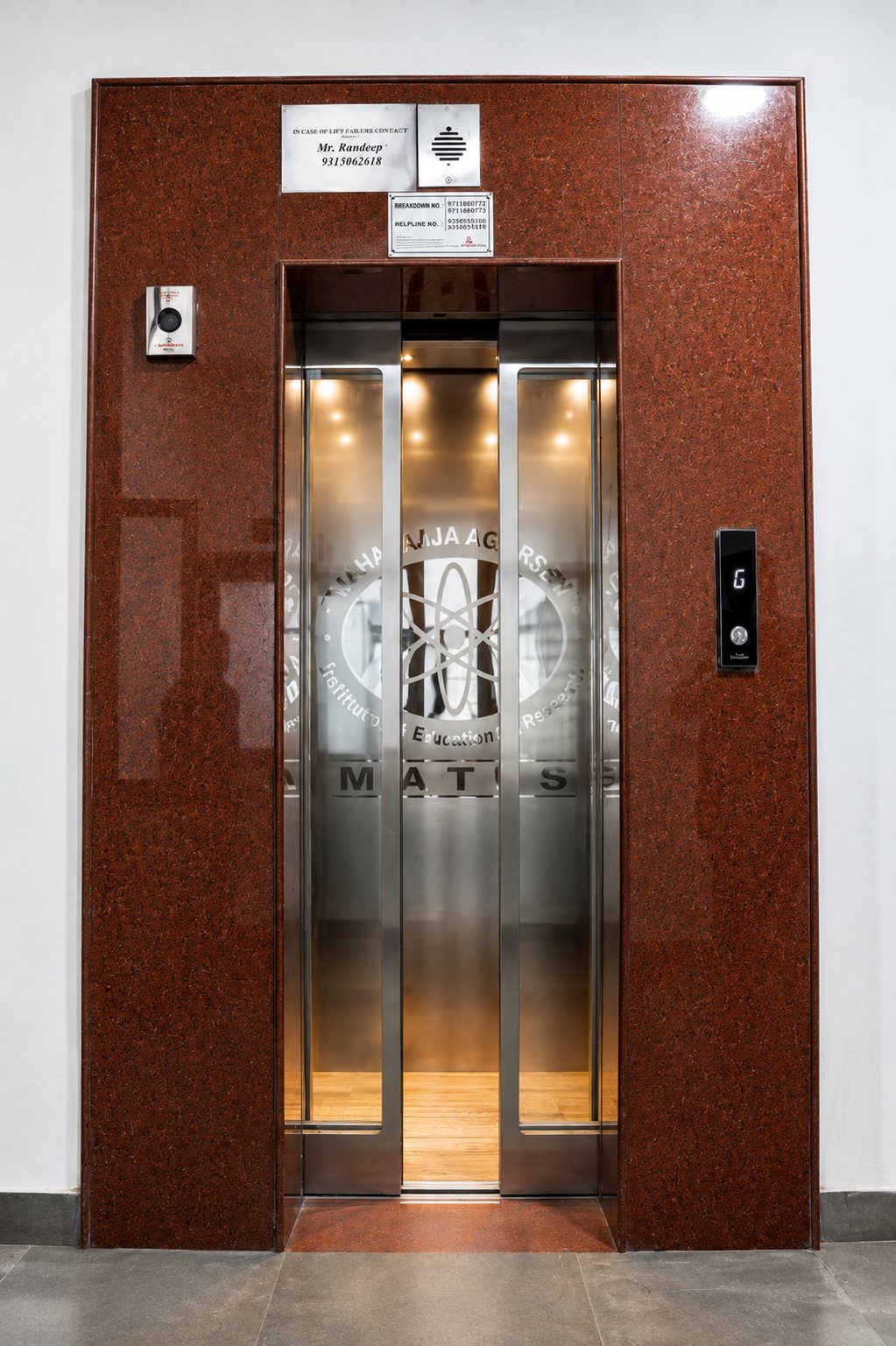

Maharaja Agrasen Institute
- SETTING
- Institutional · Delhi
- CABIN
- Hairline stainless steel, etched emblem
- PORTAL
- Red-granite surround

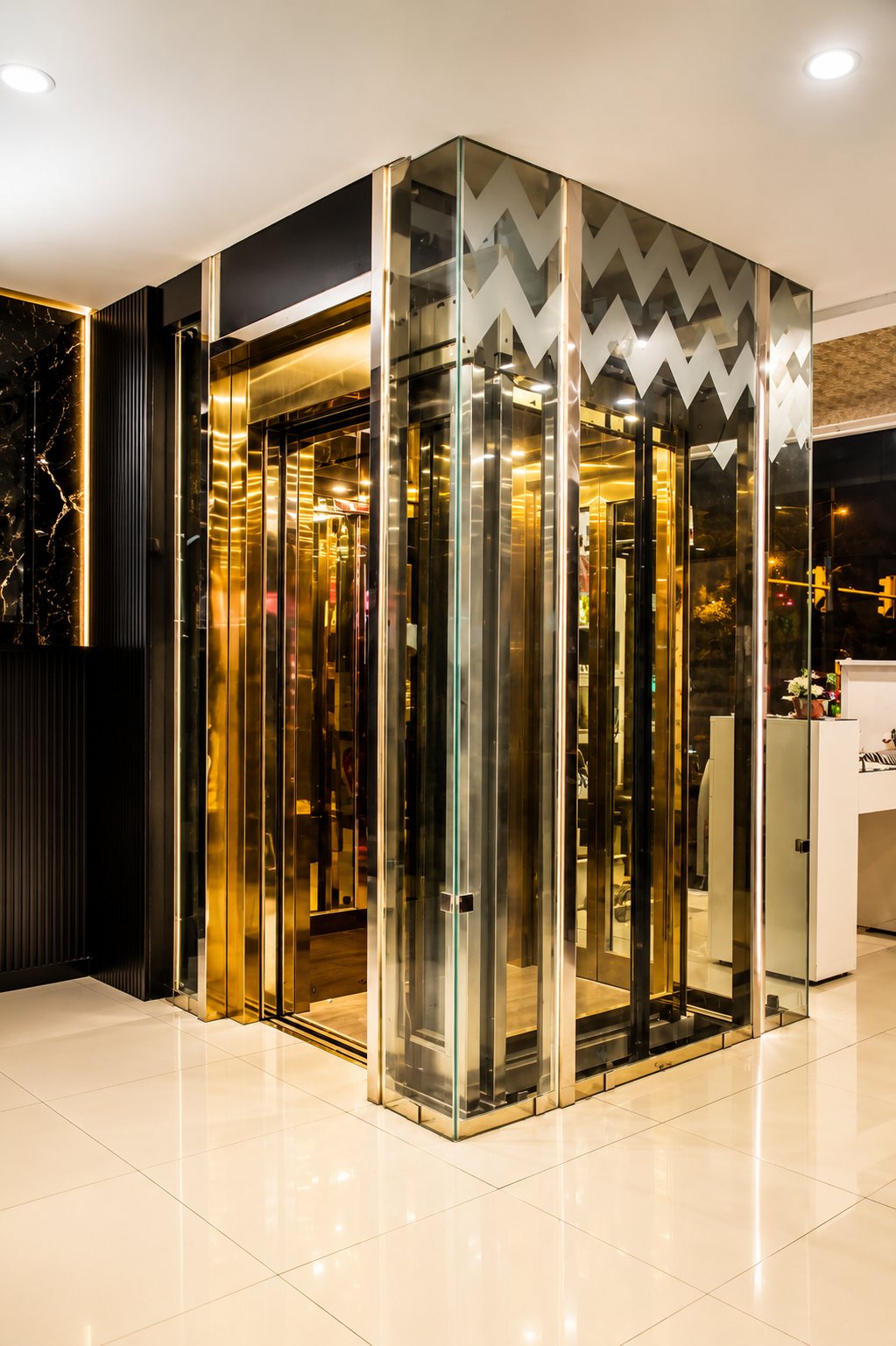

Structural-Glass Shaft
- SETTING
- Showroom · glass-enclosed shaft
- CABIN
- Mirror-gold, hairline finish
- SHAFT
- Toughened structural glass, gold portal frames

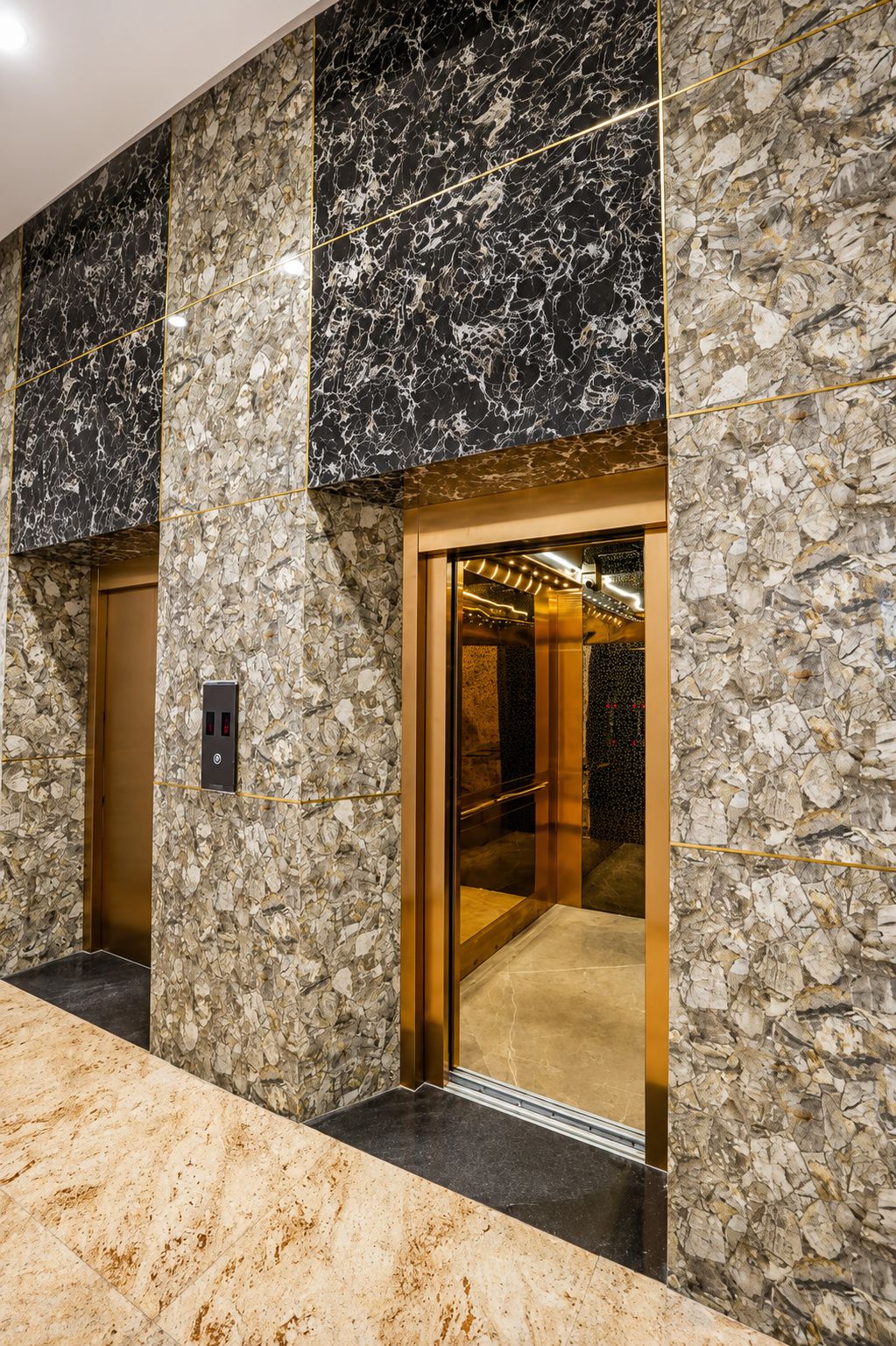

Marble Lobby Bank
- SETTING
- Commercial lobby · twin-lift bank
- CABIN
- Bronze-gold mirror, centre-opening
- SURROUND
- Agate stone cladding with brass inlay
Tailored to Fit
Finished To The Signature Collection.
Brushed steel, glass, designer lighting, custom flooring — the inside of a Span passenger elevator is configured to the building it serves, not picked from a single page. The full range of cabin finishes is collected in the Span Design Collection.
