A Home Elevator Is a Twenty-Five-Year Decision. Most People Shop It Like an Appliance.

Ārohaṇa LX is engineered for the home you intend to grow old in — silent, space-honest, and held to the same zero-incident standard as the lifts we put in hospitals. A staircase should never decide which floors you're allowed to live on.

Product media — placeholder

Overview

Most home lifts are sold on price and a brochure. Ārohaṇa LX is sold on year twelve — when the mechanism has carried your parents ten thousand times and you've long stopped thinking about it. It fits homes that already exist (no machine room, low pit), and it's built for the family that plans to stay.

The Span Difference

Silent because of the belt, not the brochure.

A flat polyurethane belt — not a chain, not a hydraulic ram — means whisper-quiet, vibration-free travel. The quiet is engineered in, not promised.

No oil. No machine room. No mess.

A gearless permanent-magnet drive needs no lubrication and no separate machine room — cleaner, greener, and it frees the space a conventional lift steals.

Built into your home, not your renovation.

Our Pre-Designed Structure Shaft (PDSS) — a ready-made steel framework — drops into existing homes with minimal structural work. A 200 mm pit, not a building site.

The hospital standard, in your hallway.

BIS / IS 17900 compliant, Auto Rescue Device standard, and the 25|0 record that governs every Span installation.

Specifications

Capacity
272 kg (4 passengers)
Speed
0.2 m/s
Travel
up to 12 m
Drive
Machine-room-less gearless traction, Permanent Magnet Synchronous Motor, flat polyurethane-coated belt (no gearbox, no oil)
Controller
Integrated VVVF
Power
Single-phase 230 V, 50 Hz
Doors
Automatic — telescopic side-opening or centre-opening
Pit
200 mm
Overhead (OHRH)
3000 mm
Cabin
Stainless steel, LED lighting, PVC-mat flooring, dot-matrix / TFT COP display
Protection
multi-beam infrared door sensor, Auto Rescue Device, emergency light, floor announcer
Compliance
BIS / IS 17900

Dimensions — all configs: 4 passengers / 272 kg (mm)

Door typeLift-well WLift-well DCar WCar DEntrance
Telescopic120014006301050600
Telescopic135014007501050700
Centre opening140014008001050600
Centre opening15001400900950700

(Pit 200 mm · Overhead 3000 mm)

Safety & Compliance

Every elevator company will tell you their lift is safe. One can show you the record: 25 years, zero incidents, every installation. Ārohaṇa LX carries an Auto Rescue Device that brings the cabin to the nearest floor and opens the doors in a power cut — a blackout becomes an inconvenience, never an emergency. Overspeed governor, car-frame safety brakes, IS 17900 throughout.

Configurations / Options

Finishes: Rose Gold · Champagne Gold · Black · Brushed Silver · Custom.

Doors: automatic telescopic side-opening or centre-opening. Retrofit: PDSS pre-engineered shaft.

Applications

Private residences, villas, duplexes, ageing-in-place retrofits, homes with elderly or mobility-limited members.

REAL INSTALLATIONS

Signature Home Cabins.

Cabins we have built and installed in homes — photographed on site.

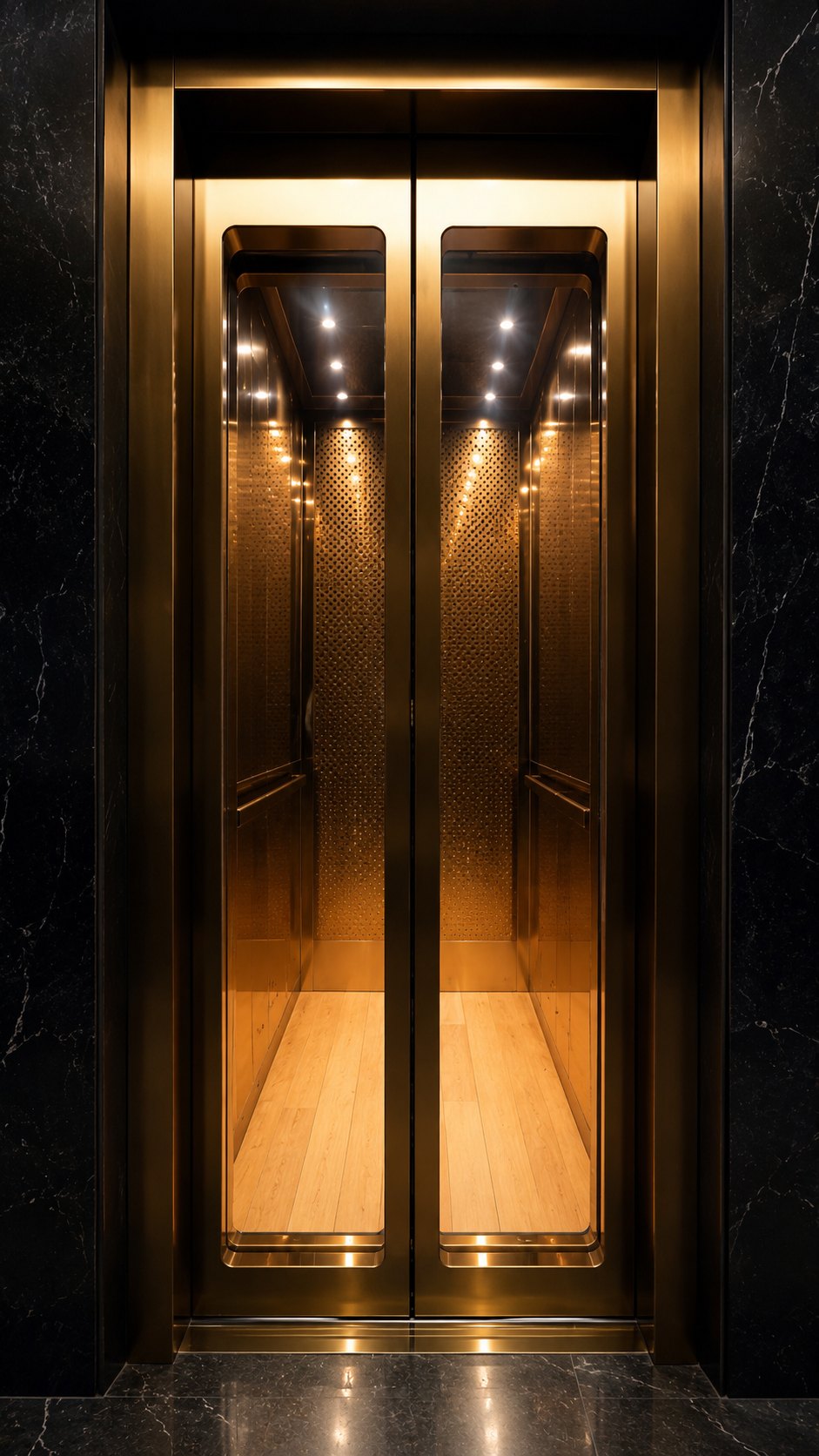

Gold Cane & Black Marble — Span Ārohaṇa LX home cabin, Gold cane-work behind bronze mirror, framed in black marble.ON SITE
AH-01

Gold Cane & Black Marble

Gold cane-work behind bronze mirror, framed in black marble.

For homes

View specifications
Side Walls
Bronze-gold mirror, hairline
Back Wall
Gold cane-perforated panel, back-lit
Portal
Black marble surround
Flooring
Warm timber
Ceiling
Gold mirror with recessed LED

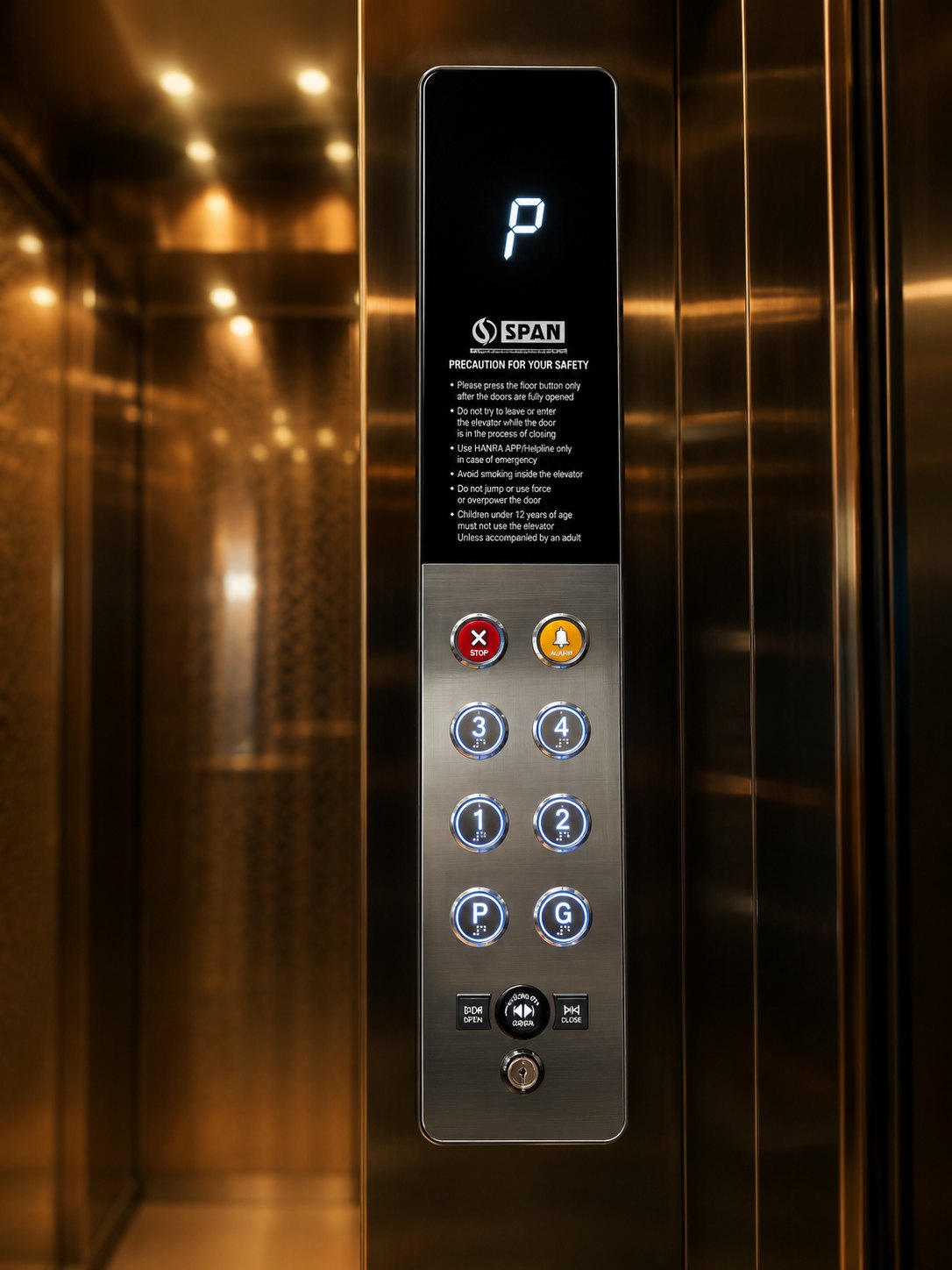

Span Command Panel — Span Ārohaṇa LX home cabin, Round back-lit keys, Braille, on black glass.ON SITE
AH-02

Span Command Panel

Round back-lit keys, Braille, on black glass.

For homes

View specifications
Panel
Span command COP, round back-lit buttons, Braille
Display
Segment position indicator
Fascia
Black glass in a bronze-gold cabin
Safety
STOP / ALARM, key switch

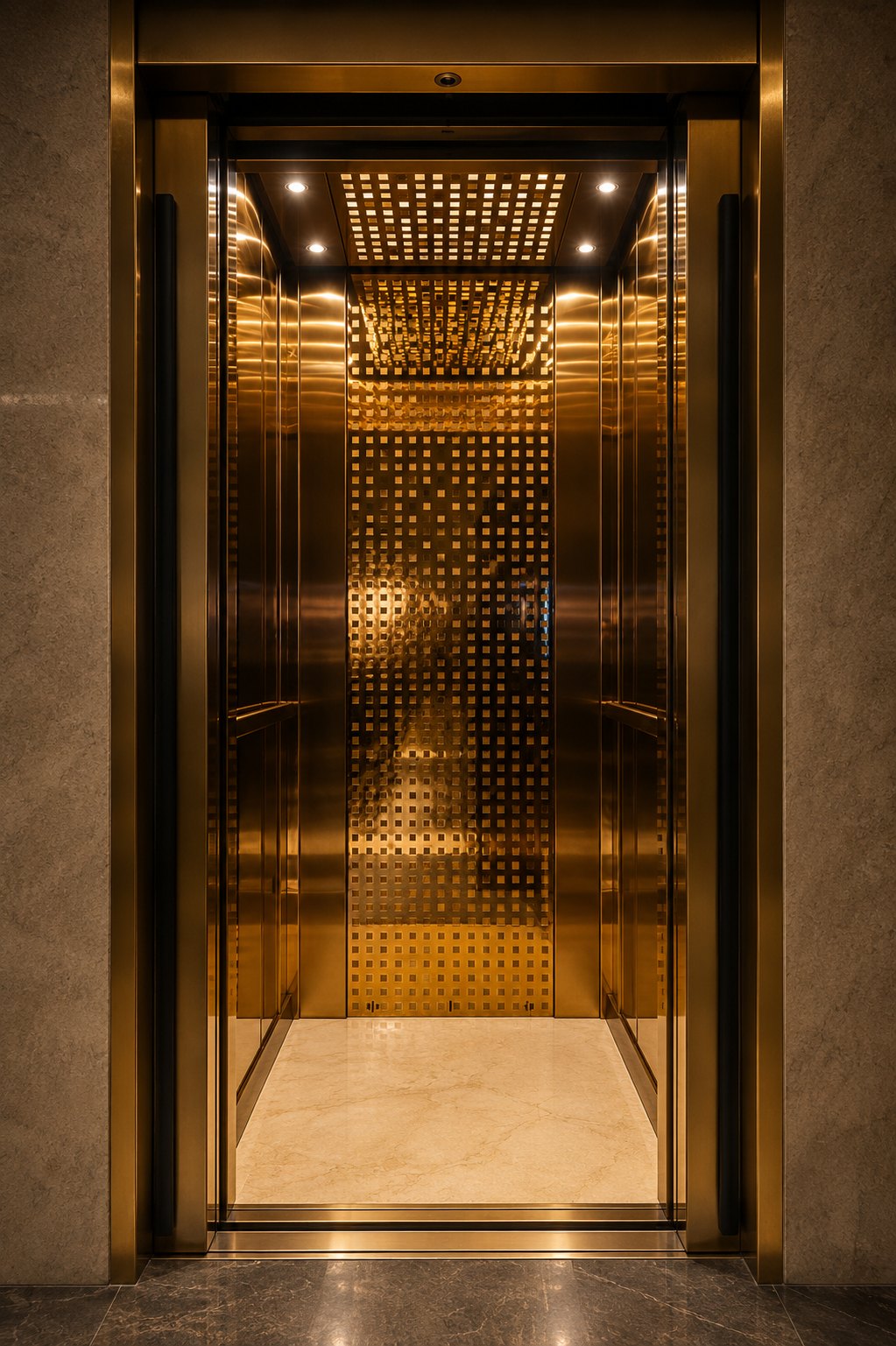

Gold Grid & Stone — Span Ārohaṇa LX home cabin, A back-lit gold grid, rising between stone and marble.ON SITE
AH-03

Gold Grid & Stone

A back-lit gold grid, rising between stone and marble.

For homes

View specifications
Side Walls
Gold mirror, hairline
Back Wall
Gold square-perforated lattice, back-lit
Portal
Stone surround
Flooring
Cream marble
Ceiling
Perforated gold panel with recessed LED

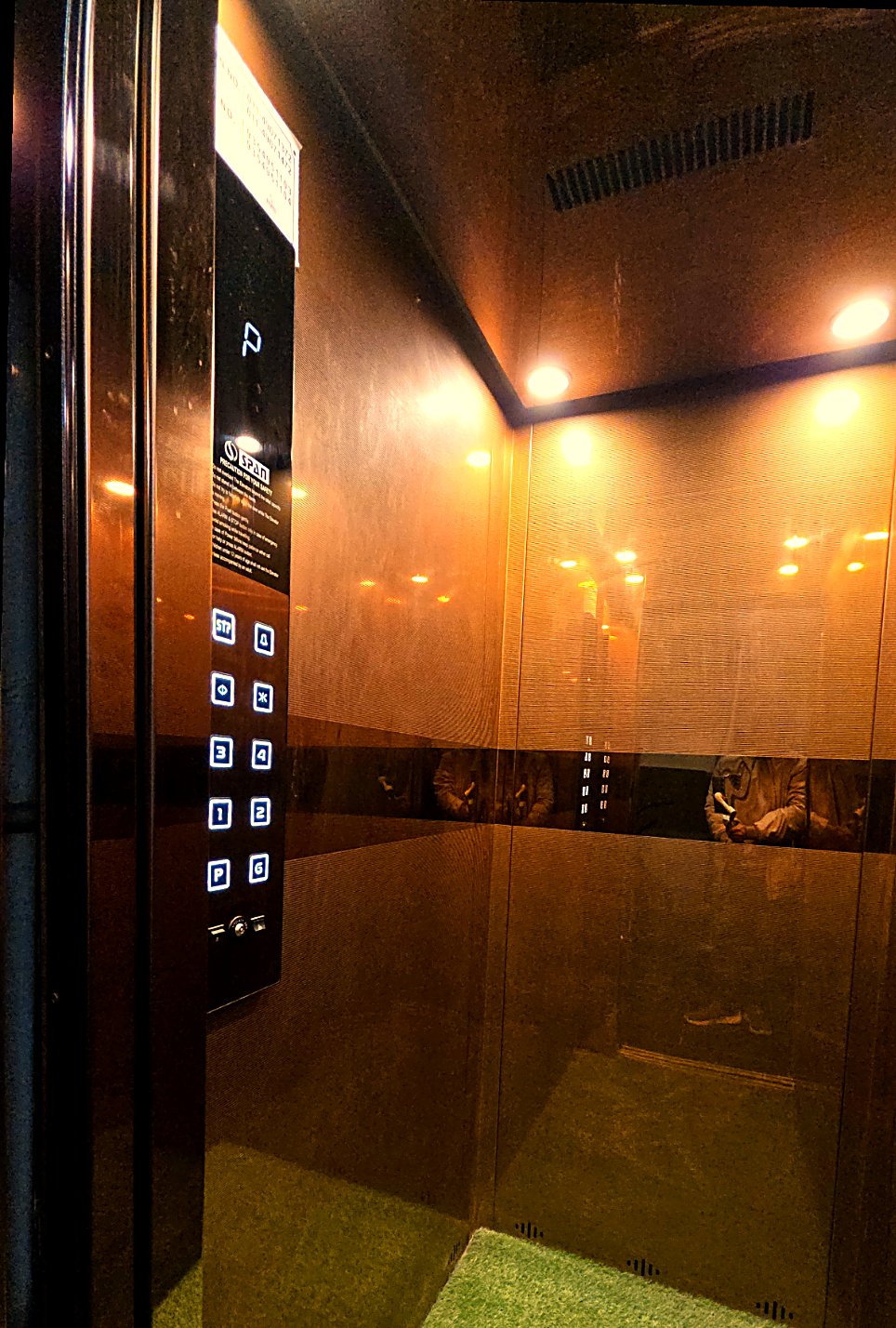

Bronze-Gold Mirror — Span Ārohaṇa LX home cabin, A bronze-gold mirror cabin, installed.ON SITE
AH-04

Bronze-Gold Mirror

A bronze-gold mirror cabin, installed.

For homes

View specifications
Side Walls
Bronze-gold mirror, hairline
Back Wall
Bronze-gold mirror with hairline band
Panel
Span command COP
Ceiling
Mirror with recessed LED downlights

Buy the Lift You'll Still Trust in 2050.

Request a site survey
